Online support two year warranty Medical Hospital Oxygen gas compressor China Manufacture
Home > Products > Medical Oxygen Gas Equipment Machine > 99.99% Oxygen Gas Booster Compressor > Online support two year warranty Medical Hospital Oxygen gas compressor China Manufacture

Online support two year warranty Medical Hospital Oxygen gas compressor China Manufacture

    Unit Price: 20000~99999 USD
    Min. Order: 1 Set/Sets
    Packaging: Standard export wooden case and waterproof bags or bubble film ,better protection for gas compressor.
    Supply Ability: 2000 Set/Sets per Month
    Port: Tianjin

Product Description

Product Details

Online support two year warranty Medical Hospital Oxygen gas compressor China Manufacture

This oil-free Piston Compressor is suitable for the recovery and pressurization of helium gas in the fields of low-temperature superconducting research, gas chromatography analysis, material heat treatment, pressure testing, sealing testing, medical technology research experiments, etc. Suction pressure: 0.04~ 0.6Mpa (G), Exhaust pressure: ≤5 Mpa (G)

Note:
1, In addition on the above-mentioned products we can also provide products used for compression of various gas and other specifications and models upon users' special requirement.
2, Clients' inquiries should contain related parameters
A. The gas compression medium
B. The flow rate: _____Nm3/hr
C. Inlet pressure: _____ Bar
D. Discharge pressure: _____ Bar
E. Inlet temperature & Discharge temperature
F. Cooling water temperature as well as other technical requirement.



Advantages of Diaphragm Compressor:
1. Oil-free compression due to the
hermetic separation between gas and oil chamber.
2. Abrasion-free compression due to
static seals in the gas stream
3.
Automatic shutdown in case of a diaphragm failure prevents damage
4. High Compression Ratios-
Discharge pressure up to 1000bar.
5.
Contamination Free Compression
6.
Corrosion Resistance
7.
High Reliability

As a displacement compressor with special, diaphragm compressor is characterized by large compression ratio, good sealing performance, and that the compress air will not be polluted by lubricant or other solid impurities.Therefore diaphragm compressor is applicable to compress high-purity, rare and precious, flammable and explosive, toxic and hazardous, corrosive and high pressure
gases.

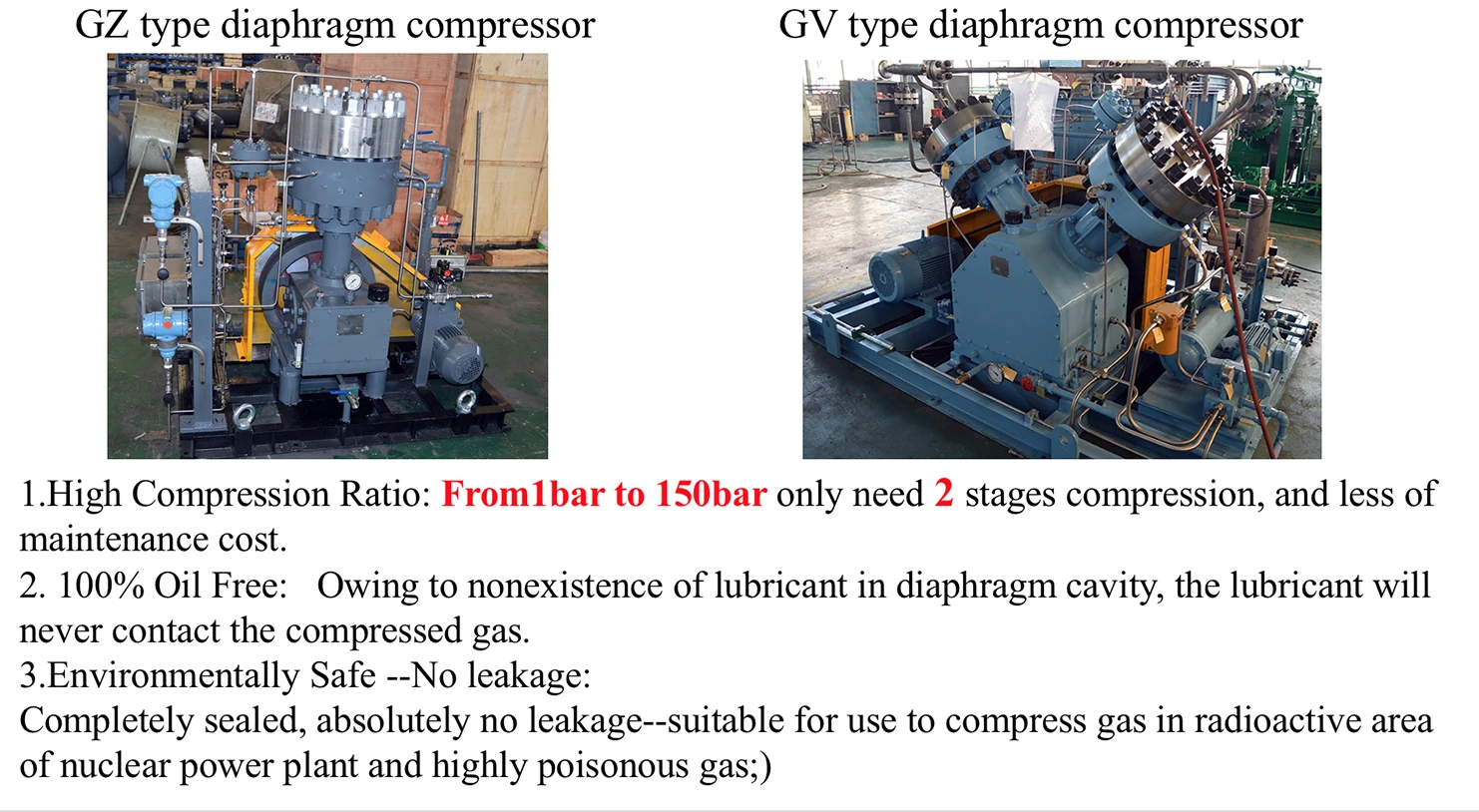

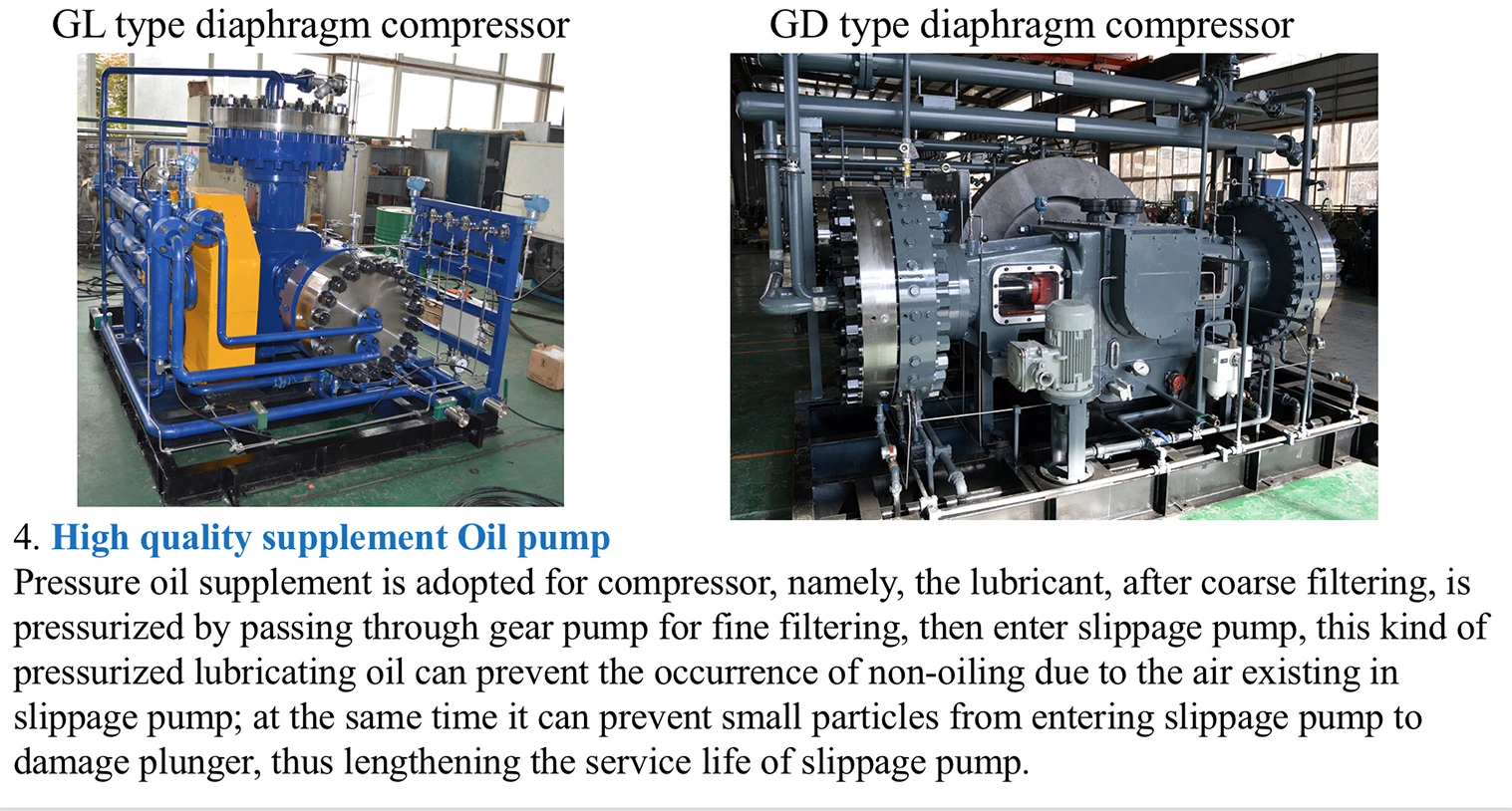

Keepwin diaphragm compressors consist of four types that are

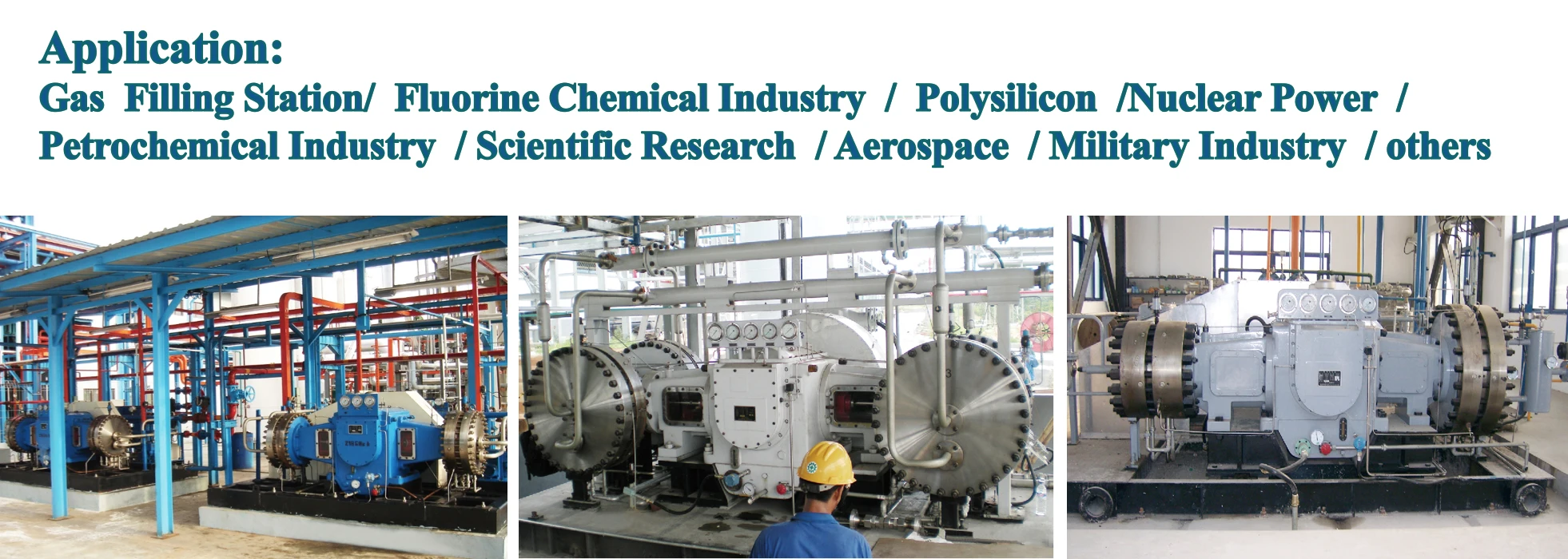

GZ, GV, GL and GD type.The exhaust pressure ranges from 1.3 Mpa (100psi) to 100 Mpa (14,500 psig). The products are widely used in the industries of national defense, scientific research, petrochemical, nuclear power,
parmaceutical, food-stuff and gas separation.

Product Details Show
Product Parameters

More high pressure compressor welcome inquiry to keepwin at keep-win dot com

Whatsapp: 0086-13910684359
Recommend Products

GZ Type Diaphragm Compressor Features

As a displacement compressor with special, diaphragm compressor is characterized by large compression ratio, good sealing performace, and that the compress air will not be polluted by lubricant or other solid impurities.Therefore diaphragm compressor is applicable to compress high-purity, rare and precious, flammable and explosive,toxic and hazardous, corrosive and high_pressure gases.
Keepwin diaphragm compressors consist of four types that are Z type, V type, L type and D type.The exhaust pressure ranges from 1.3 to 49.0 Mpa. The products are widely used in the industries of national defense, scientific research, petrochemical, nuclear power, pharmaceutical, food-stuff and gas separation.


How does a diaphragm compressor work?
Diaphragm compressor. A diaphragm compressor is a variant of the classic reciprocating compressor with backup and Piston rings and rod seal. The compression of gas occurs by means of a flexible membrane, instead of an intake element. The back and forth moving membrane is driven by a rod and a crankshaft mechanism.

Model
Standard Flow Rate Nm3/h
Suction Pressure
Mpa (G)
Discharge pressure
Mpa(G)
Power
KW
G2V-10/8-160
10
0.8
16
5.5
G2V-5/3.5~150
5
0.35
15
5.5
G3V-240/5~12
240
0.5
1.2
18.5
G2V-10/4~320
10
0.4
32
5.5
G3V-1200/75~83
1200
7.5
8.3
18.5
G3V-100/24~125
100
2.4
12.5
22
G2Z-5/30~400
5
3.0
40
5.5
GL-48/140
48
0
14
22
GL-900/300-500
900
30
50
55
GL-200/6-60
200
0.6
6
45
GL-1900/21-30
1900
2.1
3
55
GD6-140/0.5~6.5
140
0.05
0.65
45
GD8-920/8~30
920
0.8
3
110
GD-120/70~800
120
7
80
37
GD8-1000/14~50
1000
1.4
5
75
Why Choose Us

About us

1, the company since 2002 professional to do special design & customize process gas compressor

Equipment & technology

2, the quality of the diaphragm compressor 's important spare part was produced by our own plant

Service

3, stable product quality , supply, the good faith management, and can do oversea after sales service

Product Packing
Main Products

G2Z-45/150~350 Liquid gas CO2 Oxygen Diaphragm Compressor

F.A.D: 45Nm3/min
Suction pressure: 150bar
Exhaust Pressure: 350Bar

Water Cooling Hydrogen Gas Diaphragm Compressor Booster Compressor G3Z-600/75~83

F.A.D: 600Nm3/min
Suction pressure: 75bar
Exhaust Pressure:83Bar

G3Z-85/100~350 Direct Driven Hydrogen compressor Diaphragm Compressor

F.A.D:85Nm3/min Suction pressure: 100bar, Exhaust Pressure:350Bar

 G3V-30/5~315 Analytical gas Tetrafluoroethylene gas Diaphragm Compressor

F.A.D:30Nm3/min Suction pressure: 5bar, Exhaust Pressure:315Bar

G2V-10/8-160 Crude oil stabilized Gas Mixture gas Diaphragm Compressor

F.A.D:10Nm3/min Suction pressure: 8bar, Exhaust Pressure:160Bar

G2Z-45/150~350 Liquid gas CO2 Oxygen Diaphragm Compressor

F.A.D: 45Nm3/min Suction pressure: 150bar, Exhaust Pressure:350Bar

FAQ

Q1: What's your delivery time?
A: Generally Screw Compressor with 20-30 days, Reciprocating Compressor & diaphragm high pressure gas comrpessor with 12-20weeks to customize producing.

Q2: How long is your air compressor warranty?
A: Usually 1 year /12 Months for whole compressor machine, 2years/24months for air end (except maintenance spare parts.). And we can provide further warranty if necessary.

Q3: How long could your air compressor be used?
A: Generally, more than 10 years.

Q4: Can you do OEM for us?
A: Yes, of course. We have around two decades OEM experience.And also we can do ODM for you.

Q5: What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, Trade Assurance and etc. Also we could accept USD, RMB, GBP, Euro and other currency.

Q6: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.

Q7: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas after-sales service.

Q8. Are you factory?
A4: Absolutely! You have touched the primary sources of Air /Gas Compressor. We are factory.

Q9.Can you customize produce the other CNG/Hydrogen/ Oxygen/ Associated Natural Gas/ Fuel Gas etc Process gas Compressor?
A: Sure, you just need send us some below information then we can give you a professional manufacture design plan offering
A. The gas compression medium
B. The flow rate: _____Nm3/hr
C. Inlet pressure: _____ Bar
D. Discharge pressure: _____ Bar
E. Inlet temperature
F. Outlet temperature (if you requiring for air cooling or water cooling)
